COP1238 R32 T38 T45 Shank Adapter Striking Bar

Product Details：

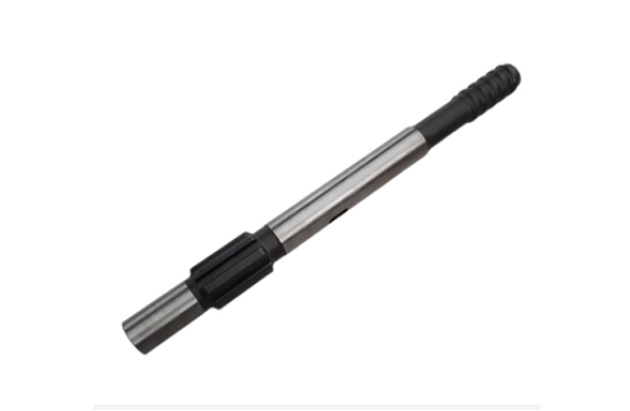

Product Name: COP1238 Shank Adapter Striking Bar

Place of Origin: China

Brand Name: LITIAN

Certification: ISO9001:2015

Category: Shank Adapter



Product Description

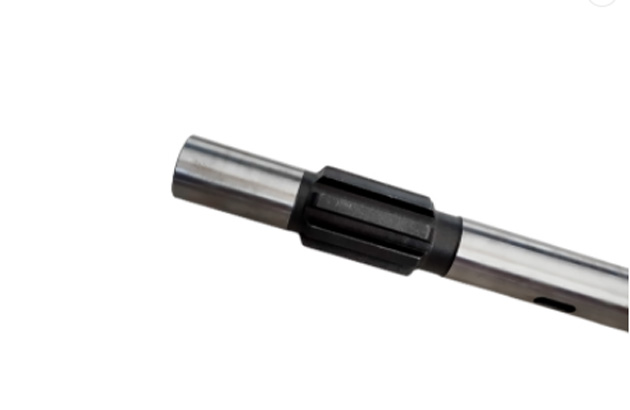

Litian produces various types of shank adaptors, also called striking bar, which can be applied to various brands of rock drills. We also can customize according to customer needs.

Our rock drill shank adapters are available for:

1. Thread: R25, R28, R32, R35, R38, T38, T45, T51, GT60, ST58, ST68

2. Length: 370mm~835mm

3. Applicable rock drill: Atlas Copco (Epiroc), Sandvik, Furukawa, Ingersoll-Rand, Montabert, Boart LongYear, etc.

4. Packing: In bundles, or in wooden case .

Striking Bars for COP1238 1038 1036

The following striking bars are mainly suitable for Atlas Copco COP1238, COP1038 and COP1036 rock drills, which are durable and cost-effective.

Thread	Length [mm]	Diameter [mm]	Splines	Weight [kg]	Model No.	Similar Part No.

R32	485	38	8	4.0	R32*8D38-485	7803-3590-03 90515890
R38	485	38	8	4.2	R38*8D38-485	7804-3590-03 90515961
T38	485	38	8	4.2	T38*8D38-485	7304-3590-03 90515983

R32	500	38	8	4.0	R32*8D38-500	7803-3591-01 90515887
T38	500	38	8	4.4	T38*8D38-500	7304-3591-01 90515980
T45	500	45	8	5.0	T45*8D45-500	7305-3591-01 90515995

R32	575	38	8	4.6	R32*8D38-575	7803-3593-01 90515888
R38	575	38	8	4.7	R38*8D38-575	90515899
T38	575	38	8	4.9	T38*8D38-575	7304-3593-01 90515981
T45	575	45	8	5.8	T45*8D45-575	7305-3593-01 90515996
